Microservice Design Pattern - BFF

Backend for frontend (BFF) is a design pattern that involves creating a dedicated backend for each frontend.

The Backends for Frontends (BFF) design pattern in microservices architecture addresses the challenge of serving different client types (like web, mobile, IoT devices) with varying needs in terms of data, performance, and UI/UX. Here's how it works and why it's beneficial in a microservices environment:

Concept

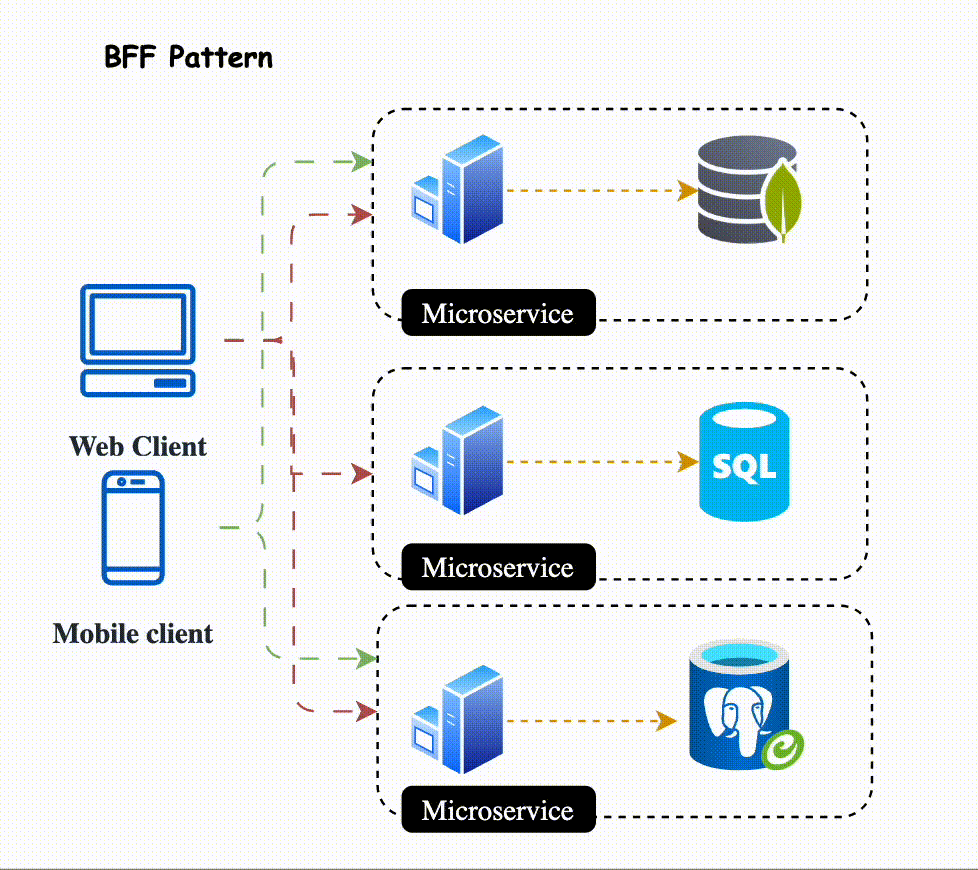

BFF Pattern: Instead of having a single backend service that serves all frontend applications, you create multiple backend services, each tailored to a specific type of frontend. Each BFF aggregates data from various microservices, formats it, and delivers it in a way that's optimized for the specific frontend.

Key Components

1. Microservices:

These are the core business logic services that handle specific functionalities like user management, order processing, etc.

2. BFF Services:

These are backend services designed specifically for each type of frontend. For example: -

• Web BFF:

  Optimized for web browsers, might include additional data for rich UI elements. -

• Mobile BFF:

  Optimizes data for mobile devices, possibly reducing payload sizes or formatting data for offline use.

• IoT BFF:

  Tailored for very lightweight data exchange, possibly real-time data streams.

Benefits

Customization:

Each frontend gets exactly what it needs, reducing unnecessary data transfer and improving performance.

Decoupling:

Frontends are decoupled from the backend services, allowing each to evolve independently.

Security:

You can implement specific security measures tailored to each frontend's needs (e.g., different authentication mechanisms).

Scalability:

Each BFF can scale independently based on the load from its specific frontend.

API Management:

Easier to manage API versioning and deprecation as each BFF can handle these transitions differently.

Implementation Considerations

Data Aggregation:

Each BFF needs to fetch data from multiple microservices. This might involve implementing a service mesh or API gateway for efficient data routing. -

Consistency:

Ensuring data consistency across different BFFs can be challenging. Strategies like eventual consistency or using a CQRS (Command Query Responsibility Segregation) pattern might be employed.

Redundancy:

There might be some redundancy in logic between BFFs, which needs to be managed, possibly through shared libraries or services. -

Monitoring and Logging:

Each BFF needs to be monitored separately, which can complicate observability unless standardized logging and monitoring practices are in place.

Development and Maintenance:

While this pattern offers flexibility, it also means more services to maintain, which could increase complexity in development and deployment.

Example Scenario: Imagine an e-commerce platform

Web BFF:

Provides full product details, reviews, recommendations, and a complex checkout process.

Mobile BFF:

Sends less data, optimizes for touch interactions, possibly preloads data for offline browsing.

IoT BFF (e.g., for smart fridges):

Might only send product availability and basic pricing, optimized for minimal data usage.

To implement the Backend For Frontend (BFF) pattern with an API Gateway, you'll need to design your architecture so that the BFF layer acts as a specialized API tailored to the needs of a specific frontend (web, mobile, etc.), while the API Gateway serves as a unified entry point to route requests across multiple microservices, including your BFF services.

Understand the Role of BFF and API Gateway:

The backends for frontends (BFF) pattern is a variation on the API gateway approach.Although the API gateway approach is elegant, it has a few downsides. If the API gateway acts as a composition point for multiple applications, it’ll begin to take on more responsibility.

For example, imagine you serve both desktop and mobile applications. Mobile devices have different needs, displaying less data with less available bandwidth, and different user features, such as location and context awareness. In practice, this means desktop and mobile API needs diverge, which increases the breadth of functionality you need to integrate into a gateway. Different needs, such as the amount of data (and therefore payload size) returned for a given resource, may also conflict. It can be hard to balance these competing forces while building a cohesive and optimized API.

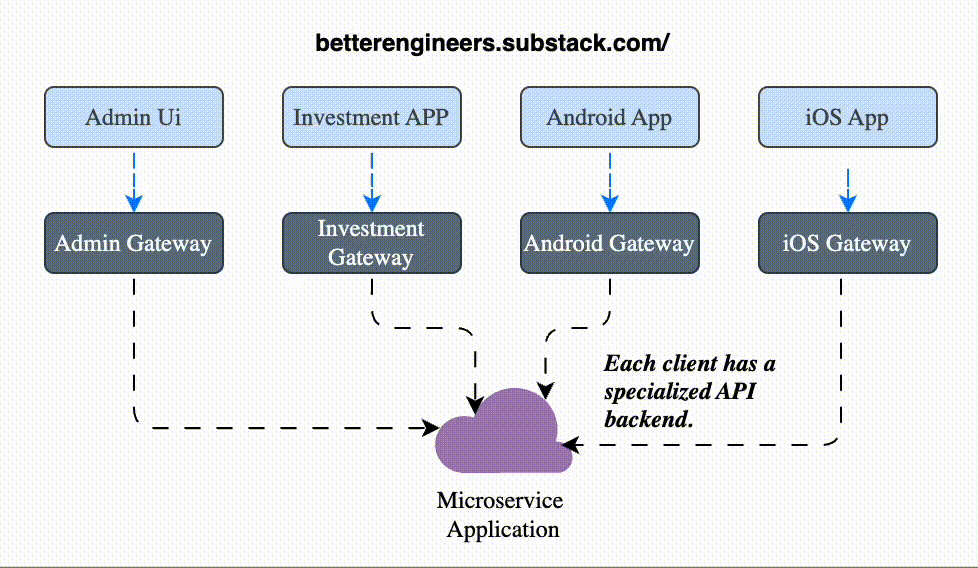

In a BFF approach, you use an API gateway for each consuming client type. To take the simple example of Bank app, each user service they offered would have a unique gateway

Doing so allows the gateway to be highly specific and responsive to the needs of its consumer without bloat or conflict. This results in smaller, simpler gateways and more focused development.

Conclusion:

The BFF pattern in microservices enhances the user experience by tailoring backend responses to the specific needs of each frontend type. While it introduces additional complexity in terms of service management, the benefits in performance, security, and user experience often justify its use in large, diverse application ecosystems.
